Product center

Smart Iot Terminal
Smart office

Smart conference solution, through HKC smart cloud screen, to achieve the purpose of "efficient meeting, smart office", and combined with artificial intelligence Internet of Things technology to create a digital collaboration space, to achieve intelligent management of enterprise meetings.

Smart office

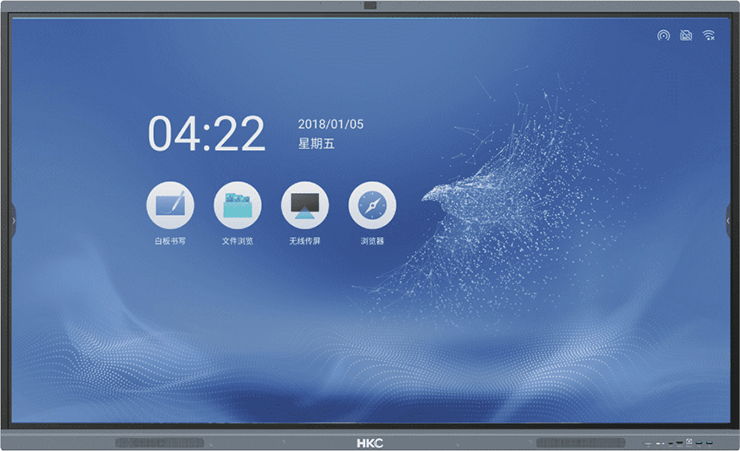

Smart cloud screen - Polar Star series

Quad-core A55CPU+MailG52 GPU

4G large running memory +32G storage

Support Android11.0 and Windows10 dual system

View product parameters
Polestar series product parameters
  • Product model
    CL065C3U
    CL075C3U
    CL086C3U
  • Screen size
    65”
    75”
    86”
  • Panel type
    IPS
    IPS
    IPS
  • Backlight type
    DLED
    DLED
    DLED
  • Resolution
    3840*2160
    3840*2160
    3840*2160
  • Screen scale
    16:9
    16:9
    16:9
  • luminance
    350cd/㎡
    350cd/㎡
    350cd/㎡
  • Contrast
    1200:1
    1200:1
    1200:1
  • Viewing Angle
    178°(H/V)
    178°(H/V)
    178°(H/V)
  • chroma
    1.07B(10bit)
    1.07B(10bit)
    1.07B(10bit)
  • CPU
    Quad-core A55
    Quad-core A55
    Quad-core A55
  • GPU
    Mail G52MP2
    Mail G52MP2
    Mail G52MP2
  • Internal memory
    4G
    4G
    4G
  • Store
    32G
    32G
    32G
  • Operating system
    Android11.0
    Android11.0
    Android11.0
  • Camera position
    Top border centered
    Top border centered
    Top border centered
  • Quantity
    1
    1
    1
  • Pixel
    1300W
    1300W
    1300W
  • Microphone position
    built-in
    built-in
    built-in
  • Quantity
    6array
    6array
    6array
  • Pickup distance
    0~8m
    0~8m
    0~8m
  • Touch count
    20Point-touch control
    20Point-touch control
    20Point-touch control
  • Touch accuracy
    ±1mm
    ±1mm
    ±1mm
  • Response time
    ≤10ms
    ≤10ms
    ≤10ms
  • Writing height
    ≤3mm
    ≤3mm
    ≤3mm
  • Input mode
    Finger, passive infrared pen
    Finger, passive infrared pen
    Finger, passive infrared pen
  • Minimum identifier
    3mm
    3mm
    3mm
  • Network interface
    RJ45*2, support Bluetooth, WiFi
    RJ45*2, support Bluetooth, WiFi
    RJ45*2, support Bluetooth, WiFi
  • Signal interface
    HDMI IN*3 USB2.0*1 USB3.0*4 Touch2.0*2 Type-C*1 VGA IN*1 Audio IN*1 Audio OUT*1 RS232*1 SPDIF*1
    HDMI IN*3 USB2.0*1 USB3.0*4 Touch2.0*2 Type-C*1 VGA IN*1 Audio IN*1 Audio OUT*1 RS232*1 SPDIF*1
    HDMI IN*3 USB2.0*1 USB3.0*4 Touch2.0*2 Type-C*1 VGA IN*1 Audio IN*1 Audio OUT*1 RS232*1 SPDIF*1
  • Power input
    100-240V~50/60Hz 1.5A
    100-240V~50/60Hz 2.0A
    100-240V~50/60Hz 2.5A
  • Overall size
    1488.7*896.8*87.1mm
    1709.7*1020.4*87.3mm
    1957.4*1160.1*87.3mm
  • Package size
    1628*208*1005mm
    1863*225*1140mm
    2112*280*1283mm
  • Wall rack
    600*400mm
    800*400mm
    800*600mm
  • Net weight
    38.5Kg
    51.9Kg
    66.5Kg
  • Gross weight
    48.45Kg
    65.3Kg
    84.2Kg
Hide more specifications
Smart cloud screen - Extreme peak series
View product parameters
Extreme peak series product parameters
  • Product model
    CL055C2U
    CL065C2U
    CL075C2U
    CL086C2U
  • Screen size
    55”
    65”
    75”
    86”
  • Panel type
    VA
    VA
    VA
    IPS
  • Backlight type
    DLED
    DLED
    DLED
    DLED
  • Resolution
    3840*2160
    3840*2160
    3840*2160
    3840*2160
  • Screen scale
    16:9
    16:9
    16:9
    16:9
  • luminance
    350cd/㎡
    350cd/㎡
    350cd/㎡
    350cd/㎡
  • Contrast
    4500:1
    5000:1
    4000:1
    1200:1
  • Viewing Angle
    178°(H/V)
    178°(H/V)
    178°(H/V)
    178°(H/V)
  • Chroma
    1.07B(10bit)
    1.07B(10bit)
    1.07B(10bit)
    1.07B(10bit)
  • CPU
    Quad-core A55
    Quad-core A55
    Quad-core A55
    Quad-core A55
  • GPU
    Dual-core Mail G31
    Dual-core Mail G31
    Dual-core Mail G31
    Dual-core Mail G31
  • Internal memory
    4G
    4G
    4G
    4G
  • Store
    32G
    32G
    32G
    32G
  • Operating system
    Android9.0
    Android9.0
    Android9.0
    Android9.0
  • Touch count
    20 touch
    20 touch
    20 touch
    20 touch
  • Response time
    ±2mm
    ±2mm
    ±2mm
    ±2mm
  • Response time
    ≤10ms
    ≤10ms
    ≤10ms
    ≤10ms
  • Writing height
    ≤3.5mm
    ≤3mm
    ≤3mm
    ≤3mm
  • Input mode
    Finger, passive infrared pen
    Finger, passive infrared pen
    Finger, passive infrared pen
    Finger, passive infrared pen
  • Minimum identifier
    3mm
    3mm
    3mm
    3mm
  • Network interface
    RJ45*1, support Bluetooth, WiFi
    RJ45*1, support Bluetooth, WiFi
    RJ45*1, support Bluetooth, WiFi
    RJ45*1, support Bluetooth, WiFi
  • Signal interface
    HDMI IN*2 USB2.0*4 Touch2.0*1 VGA IN*1 Audio IN*1 Audio OUT*1 RS232*1
    HDMI IN*2 USB2.0*4 Touch2.0*1 VGA IN*1 Audio IN*1 Audio OUT*1 RS232*1
    HDMI IN*2 USB2.0*4 Touch2.0*1 VGA IN*1 Audio IN*1 Audio OUT*1 RS232*1
    HDMI IN*2 USB2.0*4 Touch2.0*1 VGA IN*1 Audio IN*1 Audio OUT*1 RS232*1
  • Power input
    220V~50Hz 1.5A
    180-240V~50/60Hz 1.5A
    180-240V~50/60Hz 2.0A
    180-240V~50/60Hz 2.5A
  • Overall size
    1272*774*86mm
    1488.7*896.8*87.1mm
    1709.7*1020.4*87.3mm
    1957.4*1160.1*87.3mm
  • Package size
    1390*208*880mm
    1628*208*1005mm
    1863*225*1140mm
    2112*280*1283mm
  • Wall hanging
    400*200mm
    600*400mm
    800*400mm
    800*600mm
  • Net weight
    25.55Kg
    38.5Kg
    51.9Kg
    66.5Kg
  • Panel type
    30.7Kg
    48.45Kg
    65.3Kg
    84.2Kg
Hide more specifications
Smart cloud screen accessories
  • Smart cloud screen accessories
    Suitable for 65-86 inch models
  • Wireless screen transmitter
    Support Windows7/8/8.1/10; mac OS 10.12 or later
  • Wireless omnidirectional microphone speaker
    6 Array omnidirectional microphones
  • OPS computer
    Pluggable modular computer, optional to form a dual system
